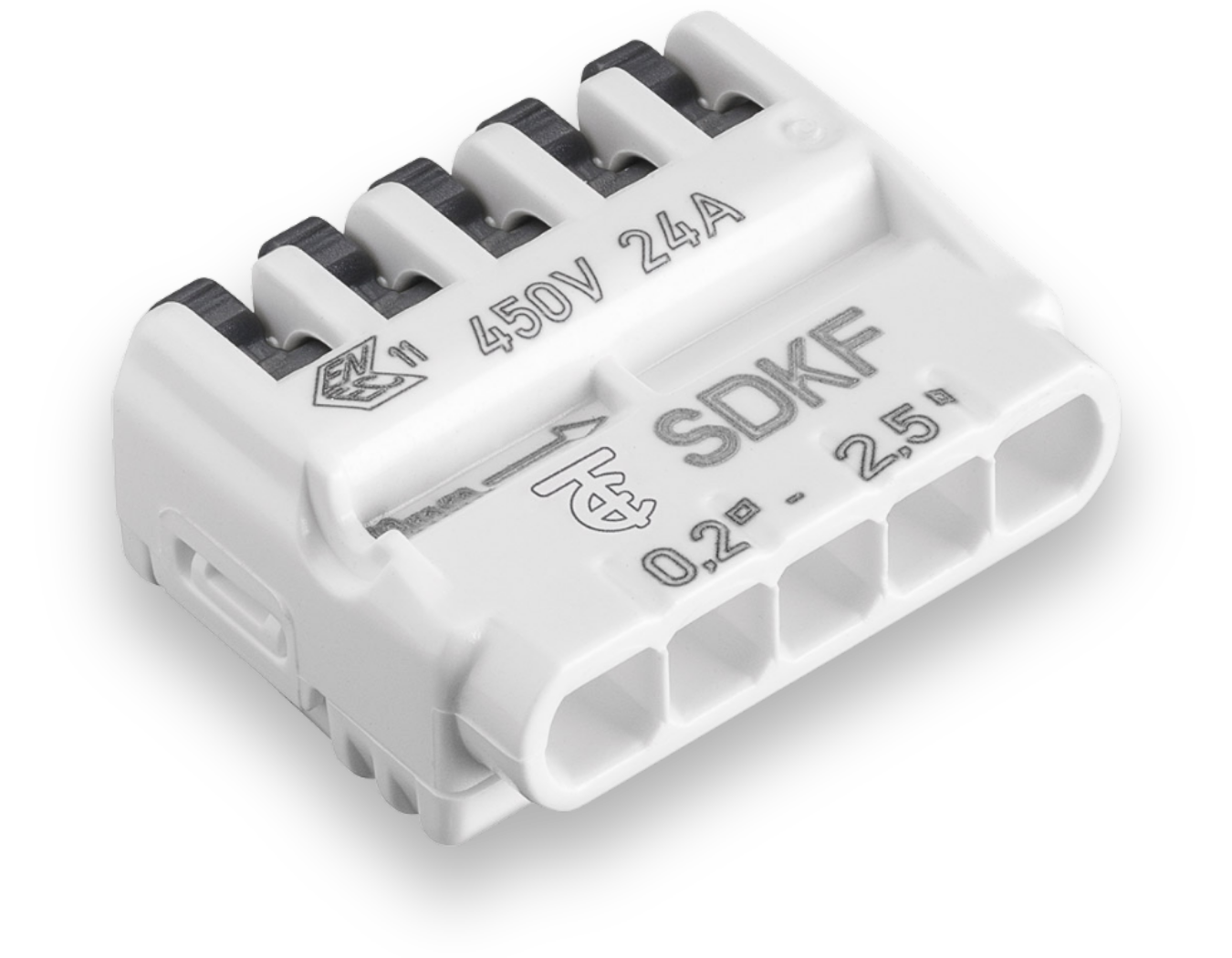

SDKF
Uinversal wire connectors
All benefits at one glance
- Clamping range: 0.2 mm² – 2.5 mm² for solid, rigid stranded and flexible wires.
- A number of wire cross sections can be combined in one terminal.
- High pull-out forces.
- Connection of rigid wires without activating the release lever.
- Viewing window for visual inspection of the clamping points means greater safety during Installation.
SDKF
The allround talent SDKF can be used for numerous applications in building installations and luminaires. There is a tendency towards push-in technology for all types of wires (solid, rigid stranded and flexible). Wires can easily be connected and detached without the use of tools.
Technical data
Box type
Nominal voltage
Nominal current
Max. ambient temperature
Wire stripping length
Clamping range
Models
88167926

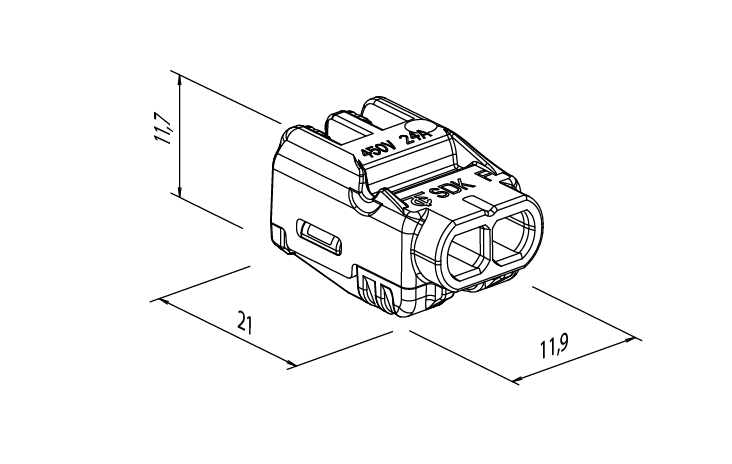

SDKF 2
11.9mm 0.47in
21.1mm 0.83in
11.7mm 0.46in
88167927
SDKF 3
16.1mm 0.63in
21.1mm 0.83in
11.7mm 0.46in
88167928

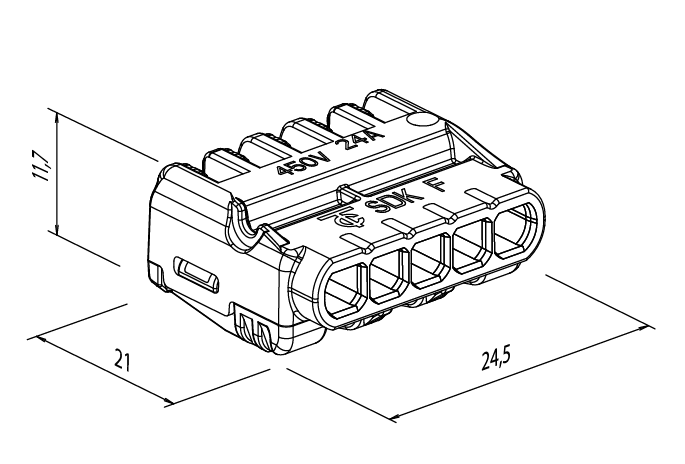

SDKF 5
24.5mm 0.96in
21.1mm 0.83in
11.7mm 0.46in
88168002
SDKF 2 TR-AN LOSE
11.9mm 0.47in
21.1mm 0.83in
11.7mm 0.46in
88168003
SDKF 3 TR-AN LOSE
16.1mm 0.63in
21.1mm 0.83in
11.7mm 0.46in
88168004
SDKF 5 TR-AN LOSE
24.5mm 0.96in
21.1mm 0.83in
11.7mm 0.46in
88168005
SDKF 3 LOSE
16.1mm 0.63in
21.1mm 0.83in
11.7mm 0.46in
88168006
SDKF 5 LOSE
24.5mm 0.96in
21.1mm 0.83in
11.7mm 0.46in
88168007
SDKF 2 LOSE
11.9mm 0.47in
21.1mm 0.83in
11.7mm 0.46in
