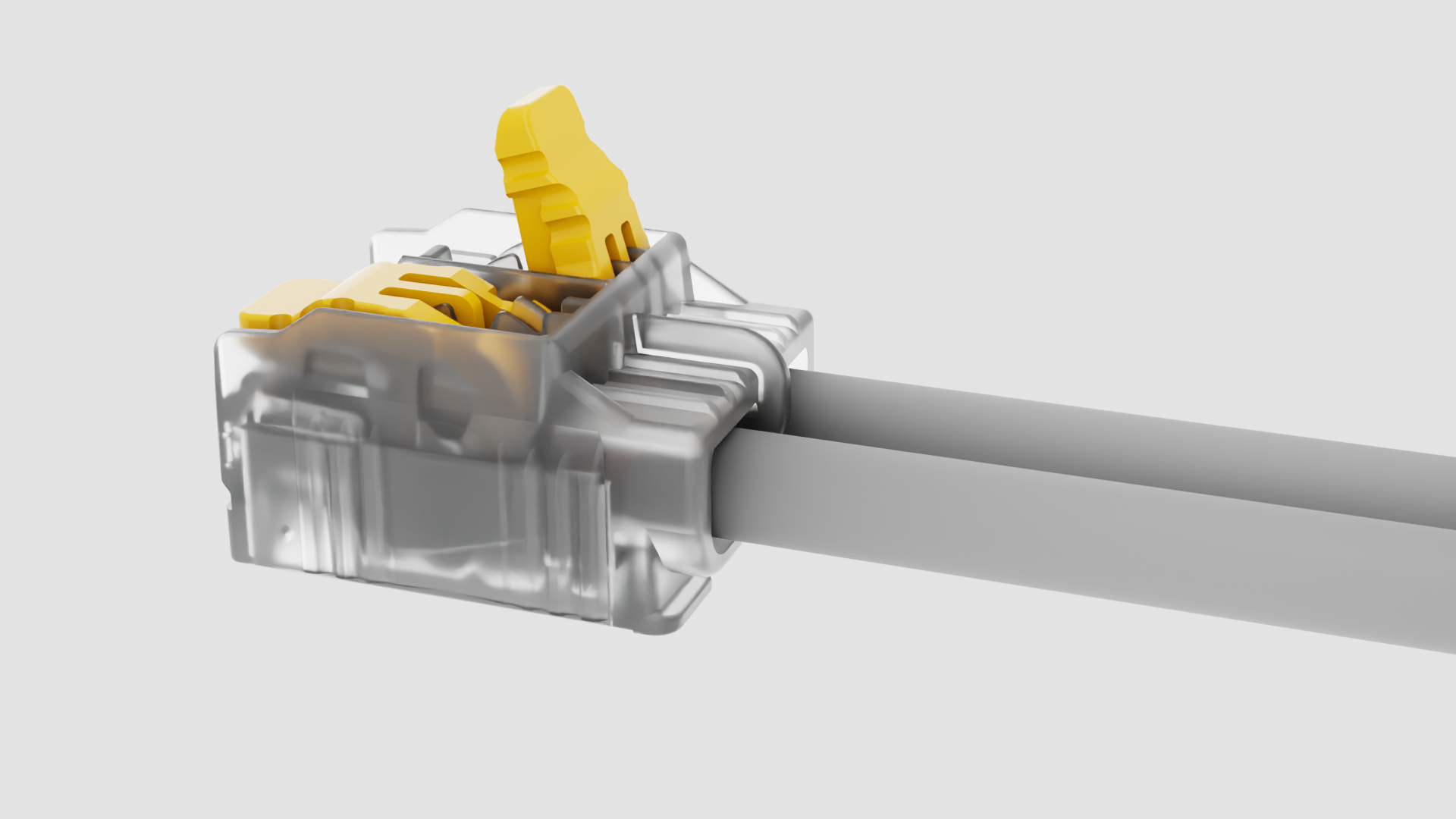

SLC
Screwless lever connectors
All benefits at one glance
- Clamping range: 0.14 mm² - 4 mm² for flexible wires
- 0.2 mm² - 4 mm² for solid & rigid stranded wires
- Time saving: Solid wires can be inserted without opening the release lever.
- Increased safety during installation: Inspection window for checking the clamping point.
- Smart lever design prevents accidental wire release.
- Multiple wire cross-sections can be combined in one terminal.
- High pull-out forces
The SLC can be used for numerous applications in household appliances and luminaires. There is a tendency towards push-in technology for all types of wires (solid, rigid stranded and flexible). Wires can easily be connected and detached without the use of tools.
Technical data
Box type
375 x 280 x 144mm
14.76 x 11.02 x 5.67in
Nominal voltage
450 V
Nominal current
32 A
Max. ambient temperature
T 85
Wire stripping length
11-12mm
0.43-0.47in
Clamping range
0.14-4mm² flexible | 0.2-4mm² solid,rigid
0.01-0.16in² flexible | 0.01-0.16in² solid,rigid
Models
88168711
SLC 2 LOSE
19.6mm 0.77in
14.2mm 0.56in
10.5mm 0.41in
88168712
SLC 3 LOSE
19.6mm 0.77in
19.9mm 0.78in
10.5mm 0.41in
88168713
SLC 5 LOSE
19.6mm 0.77in
31.3mm 1.23in
10.5mm 0.41in
