SDK
Screwless installation connectors
All benefits at one glance
- Clamping range: 0.5 mm² – 2.5 mm² for solid wires. 1.5 mm² – 2.5 mm² for rigid stranded wires.
- A number of wire cross sections can be combined in one terminal.
- Highly transparent viewing window for visual inspection of the clamping points means greater safety and reliability during installation.
- Easy to plug in – high pull-out force.
Technical data
Box type
Nominal voltage
Nominal current
Max. ambient temperature
Wire stripping length
Clamping range
Models
88714710
SDK 8 LOSE ANTHRAZIT
39.2mm 1.54in
15.7mm 0.62in
8.9mm 0.35in
88714701
SDK 3 LOSE ANTHRAZIT
39.2mm 1.54in
15.7mm 0.62in
8.9mm 0.35in
88714694
SDK 5 LOSE ANTHRAZIT
26mm 1.02in
15.7mm 0.62in
8.9mm 0.35in

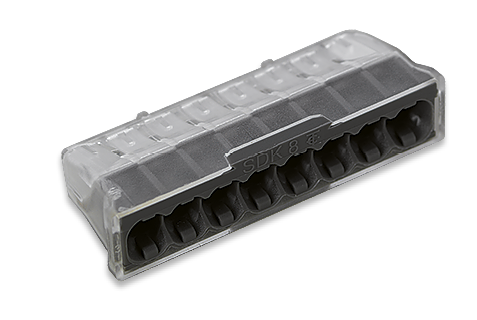

88713900
SDK 8 ANTHRAZIT
17.2mm 0.68in
15.7mm 0.62in
8.9mm 0.35in
88168331
SDK 8 NEUTRAL
39.2mm 1.54in
15.7mm 0.62in
8.9mm 0.35in
88168330
SDK 5 NEUTRAL
26mm 1.02in
15.7mm 0.62in
8.9mm 0.35in
88168329
SDK 3 NEUTRAL
17.2mm 0.68in
15.7mm 0.62in
8.9mm 0.35in

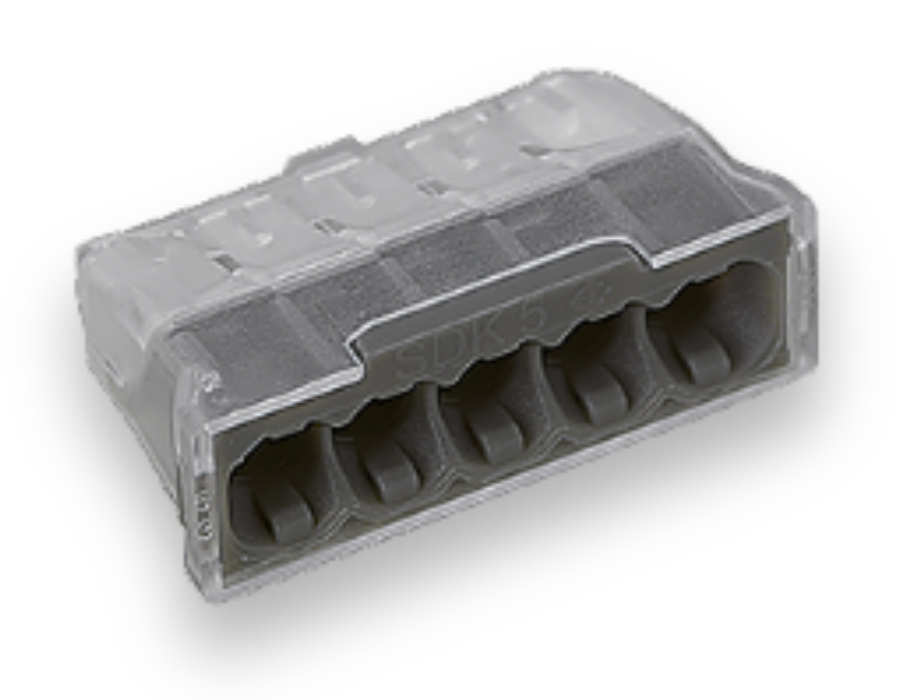

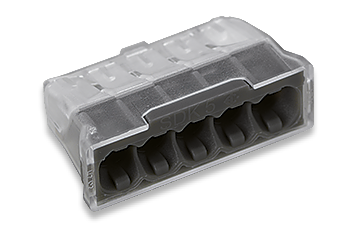

88713967
SDK 5 ANTHRAZIT
26mm 1.02in
15.7mm 0.62in
8.9mm 0.35in

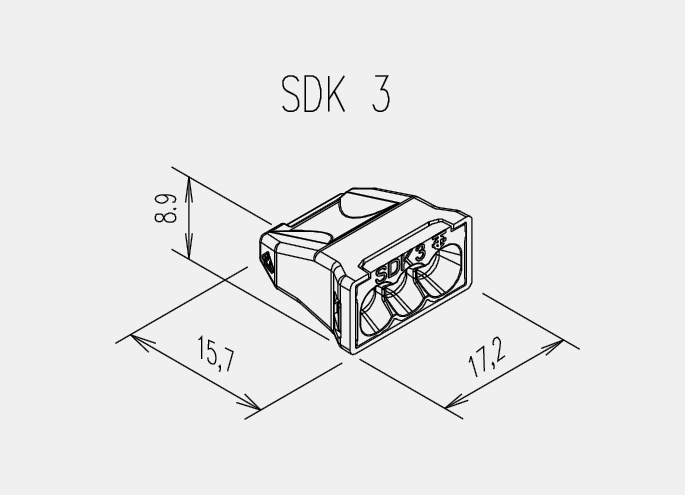

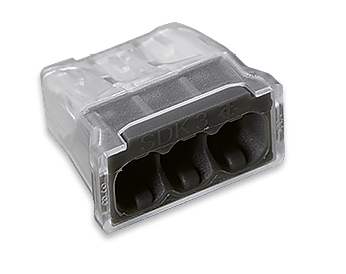

88713954
SDK 3 ANTHRAZIT
17.2mm 0.68in
15.7mm 0.62in
8.9mm 0.35in
